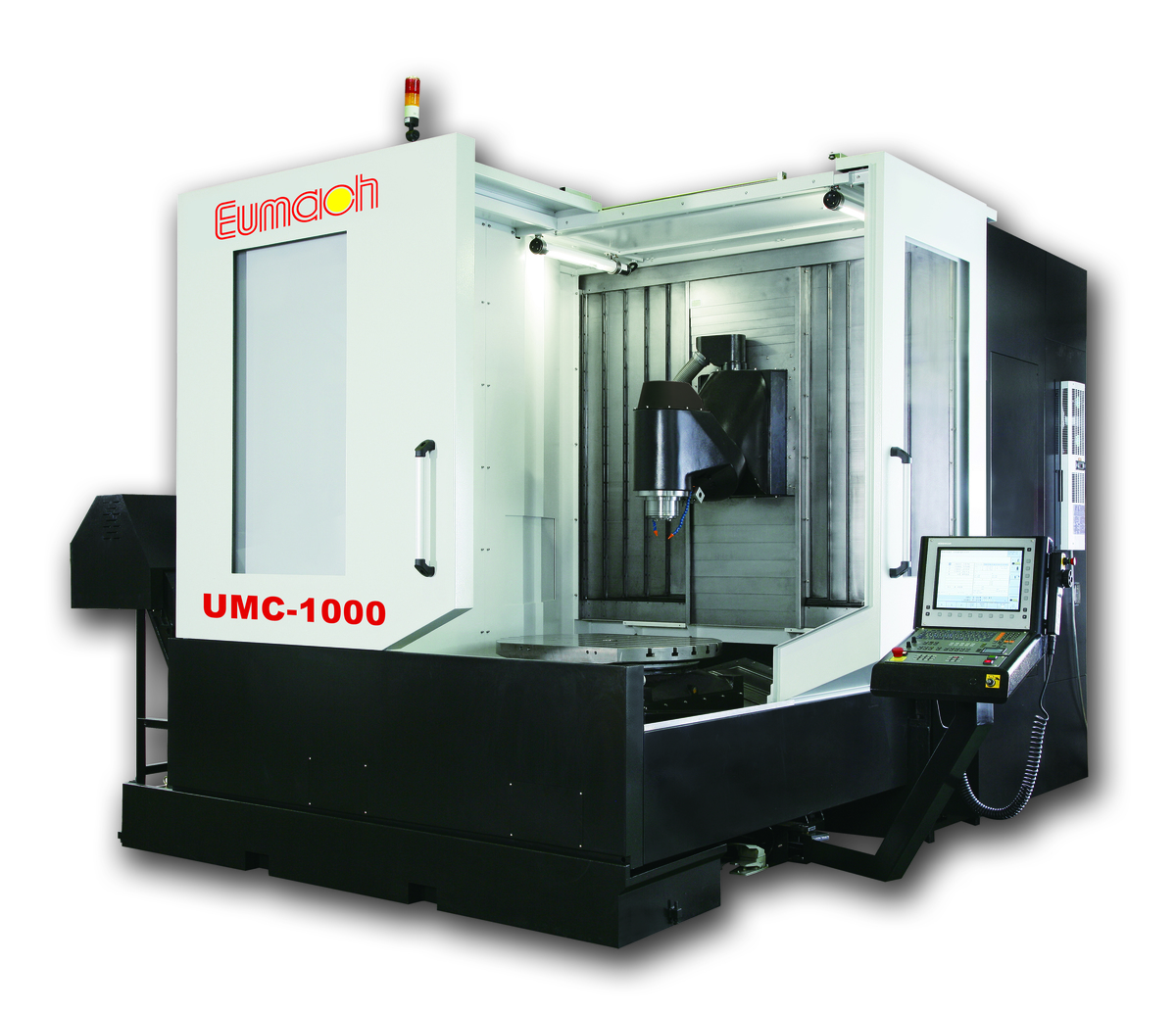

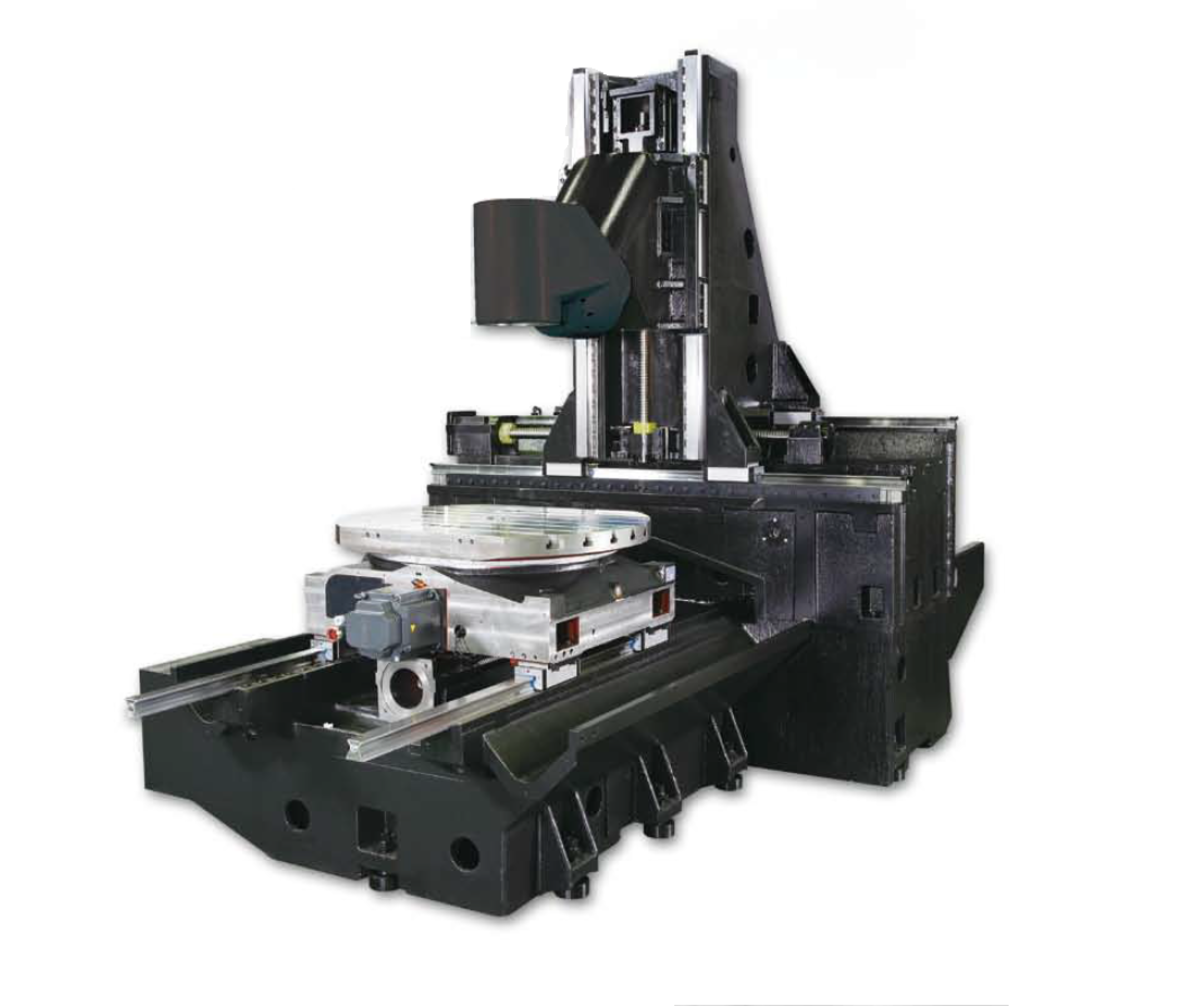

UMC-1000
STANDARD FEATURES & ACCESSORIES
FULL SPLASH GUARD WITH TOP ROOF
PROGRAMMABLE COOLANT SYSTEM
AUTOMATIC LUBRICATION SYSTEM
SPINDLE AIR BLAST
SYSTEM WORK ALARM, INDICATION LAMPS
SPINDLE WATER COOLER
RS-232 TERMINAL INTERFACE PORT
MACHINE & CONTROL MANUALS
TOOLBOX WITH SPANNERS & WRENCHES
CHAIN TYPE CHIP CONVEYORS + 2 SCREW CHIP AUGERS
3 AXIS LINEAR SCALES + 2 AXIS ROTARY ENCODERS
Request Quote on This Model
Specifications
| Item | Model Description | UMC-1000 Milling center | UMTC-1000 Mill-turn center |
| Travel | Linear axis X / Y / Z | 1000 / 800 / 700 | 1000 / 800 / 610 |
| Swivel head B axis | 0° ~ 180° | ||
| Rotary table C axis | 0.001 degree x 360,000 | ||
| Swivel head ( B axis ) | Maximum spindle speed | 14000 (18000,24000) RPM | 12000 RPM |
| Spindle power & torque | 29.3 & 35KW, 70 &160Nm ( S1&S6) | ||
| Spindle taper | BT (CAT/SK)40, (HSK-A63) | KM 63 | |
| Front bearings diameter | 70mm | ||
| Vertical spindle nose to table | 100mm ~ 800mm, | 29mm ~ 729mm | |
| Hor.spindle center to table top | 50mm ~ 750mm | 9mm ~ 709mm | |
| Hor.spindle nose to table center | -230mm ~ 570mm | -262mm ~ 538mm | |
| Rotary table ( C axis ) | Table dimension | 800mm x 1000mm | Ø800mm |
| Maximum loading | 1500kg | 1000kg | |
| Indexing increment | 0.001 degree | ||
| T slots ( size x No.x pitch ) | 18mm x 7 x 100mm | 18mm x 7 x 120mm | |
| Table top to floor | 1000mm | 1036mm | |
| Feed rate | Rapid linear axis X/Y/Z | 24M / 24M / 24M | |
| rotary axis B/C | 10 (60) RPM | 500 RPM | |
| Cutting feed | 20 m/min | ||
| Transmission | Linear axis XYZ | Ø50mm C3 ball screw | |
| Swivel head B axis | Torque motor | ||
| Rotary table C axis | Worm wheel (Torque motor) | Torque motor | |
| Axis Accuracy (VDI3441) | Positioning linear axis XYZ / BC | 12 microns / 10 " | |
| Repeatability linear axis XYZ / BC | 8 microns / 5 " | ||
| ATC | Tools number | 40 (52, 80) stations | |
| Max.tool dia./length/weight | 120 mm / 300mm / 7kg | ||
| Tools exchanging | vertical position | ||
| Weight | Net ( before packing ) | 15 ton | 16 ton |
