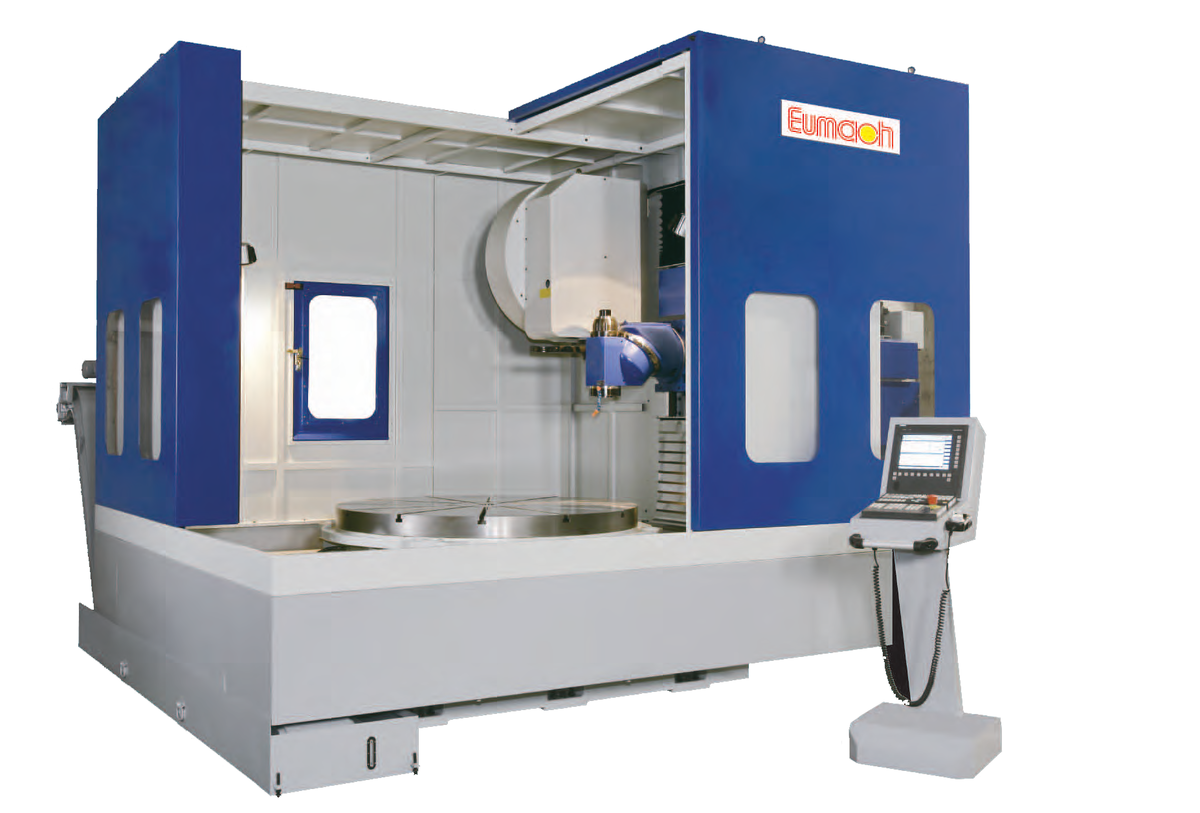

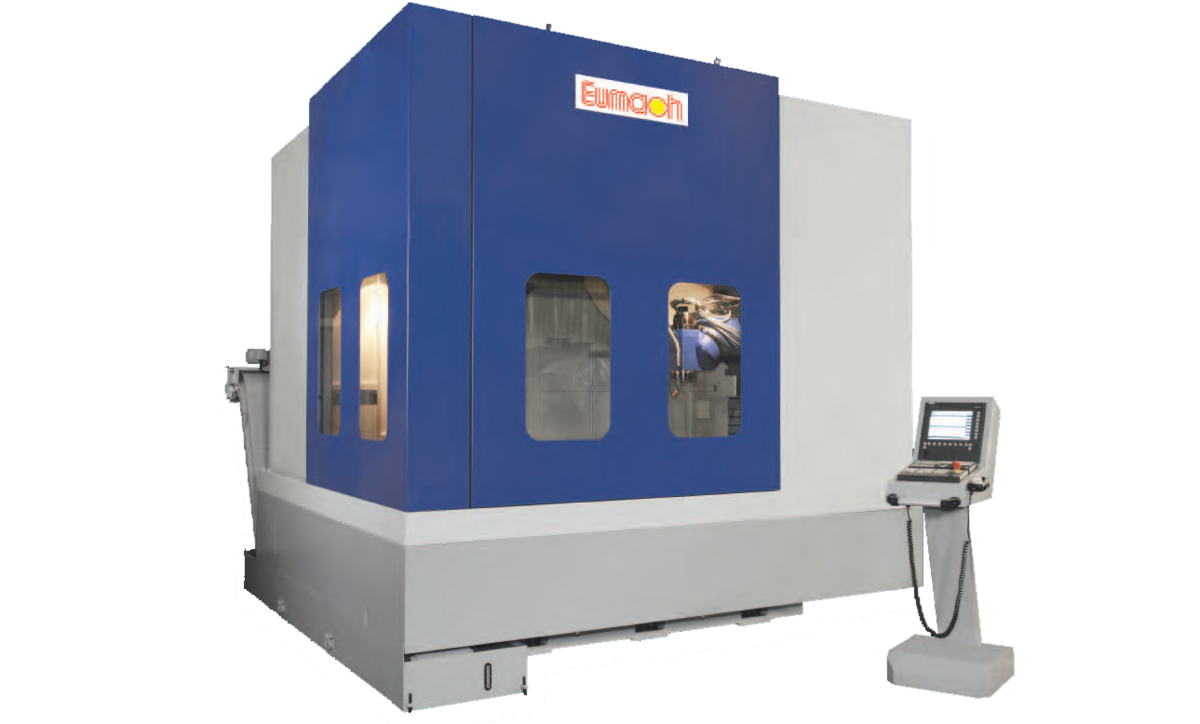

YZC-1650
Standard features & accessories :
3500RPM automatic V/H milling head
24 stations automatic tool changer
BT#50 spindle taper & ATC
full splash guarding with sliding roof
programmable coolant system
automatic lubrication system
Fagor control
Request Quote on This Model
Specifications
| Model | YZC-1650 | |
| Travel (Y,Z axis ) | Y axis : milling head forward & backward by sliding ram | 1000mm |
| Z axis : milling head up & down by sliding saddle | 952mm | |
| Rotary table ( C axis ) | Table dimension | Ø 1650mm |
| Table to floor | 929mm included 30mm leveling pads | |
| Maximum loading | 8000KG | |
| Indexing increment | 0.001° x 360,000 positions | |
| T slots | radial type 12 slots with 22mmH7 | |
| Vertical & horizontal milling head | Maximum speed | 3500 rpm |
| Spindle power (S1 / S6) | 17KW / 22KW | |
| Spindle taper | BT#50 | |
| Front bearing diameter | 90 mm | |
| Vertical to horizontal time | 12 seconds | |
| Distance | Vert. spindle nose to table top | 0 ~ 952mm |
| Vert. spindle nose to table center | 1149mm | |
| Horiz. spindle center to table top | 0 ~ 1002mm | |
| Horiz. spindle nose to table center | 1099mm | |
| Axis Feed rate | Rapid feed Y / Z / C | 10M / 10M / 4.16 RPM |
| Cutting feed | 5 m / min | |
| Axis Transmission | Y & Z linear axis | Ø 50mm C3 ball screw |
| C rotary axis | dual lead worm gear | |
| ATC | Tool holder type | BT#50 |
| Pull stud | BT#50 | |
| Tools number | 24 pieces | |
| Max.tool dia. / length / weight | Ø 120 mm / 300mm / 15kg | |
| Tools exchanging method | swing arm at vertical position | |
| Weight | Net ( before packing ) | 16 ton |
Optional features & accessories
20 bars ( 290 PSI ) coolant thru spindle
1500mm Vertical Z axis travel
linear scale on YZ & rotary encoder on C
VH-2.5 or VH-5 multi-angled head
32/40/60 stations automatic tool changer
