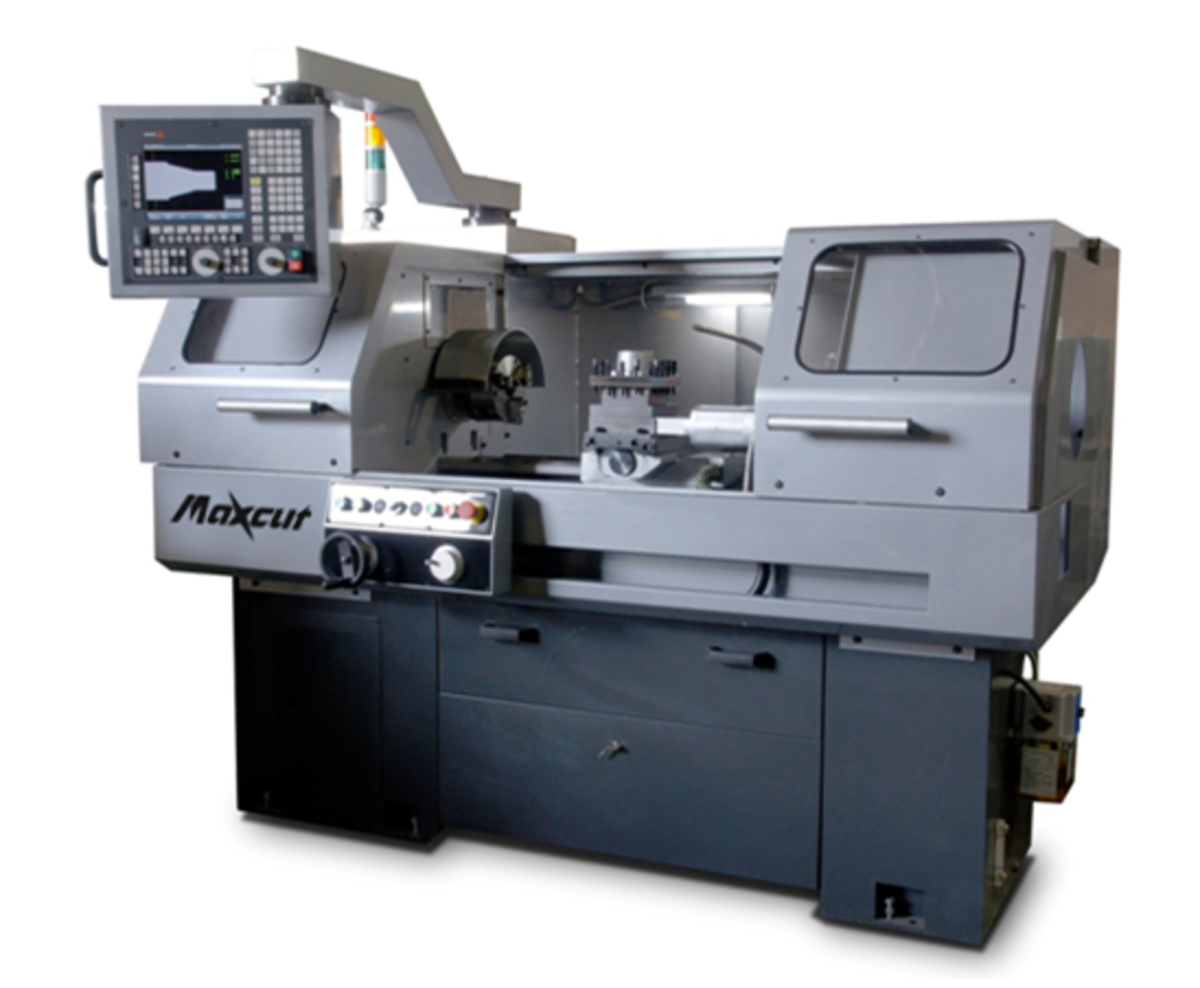

MLNC-1440SSM
Fagor 8055 CNC control system
Back plate for chuck
Coolant pump
Automatic lubrication system
Center sleeve, Two dead centers
Operational manual & parts list
Tool box and adjusting tools
6" 3-jaw scroll chuck
8" 4-jaw independent chuck
Steady rest
Electrical 4 position turret
Electronic handle wheel for X/Z axis
Fully enclosed safety guard.
Chip collect tray
Request Quote on This Model
SPECIFICATIONS
| NOMINAL SIZE | |
| Swing Over Bed | 356 mm 14” |
| Height of Center | 176mm 6-7/8” |
| Swing Over Cross Slide | 220mm 8-5/8” |
| Distance Between Centers | 1000mm 40” |
| Width of Bedways | 206 mm 8-1/2” |
| SPINDLE | |
| Number of spindle speeds | 3 steps |
| Range of spindle speeds | 50 - 2000 RPM |
| Hole through spindle | 38mm 1-1/2in |
| Spindle nose | D1-4 CAMLOCK |
| Taper of spindle bore | M.T.#5 |
| TAIL STOCK | |
| Total travel of tailstock barrel | 120mm 4-3/4in |
| Taper in tailstock barrel | M.T.#3 |
| Diameter of barrel | Dia. 45mm 1-3/4in |
| X axis | |
| Cross slide travel | 180mm 7in |
| Dia. of Ballscrew | 25mm 5P |
| Rapid travel | 6m/min |
| Servo motor | 7.3Nm |
| Z axis | |
| Longitudinal travel | 840mm 33-1/2in |
| Dia. of Ballscrew | 32mm 5P |
| Rapid travel | 8m/min |
| Servo motor | 7.3Nm |
| ELECTRICAL EQUIPMENT | |
| Main Motor | 5HP 3.75kw |
| Auto lubrication | 3L 220V |
| Coolant pump | 1/8HP 220V |
| PACKING SIZE | |
| Machine net weight | 1200kg |
| Gross weight | 1300kg |
