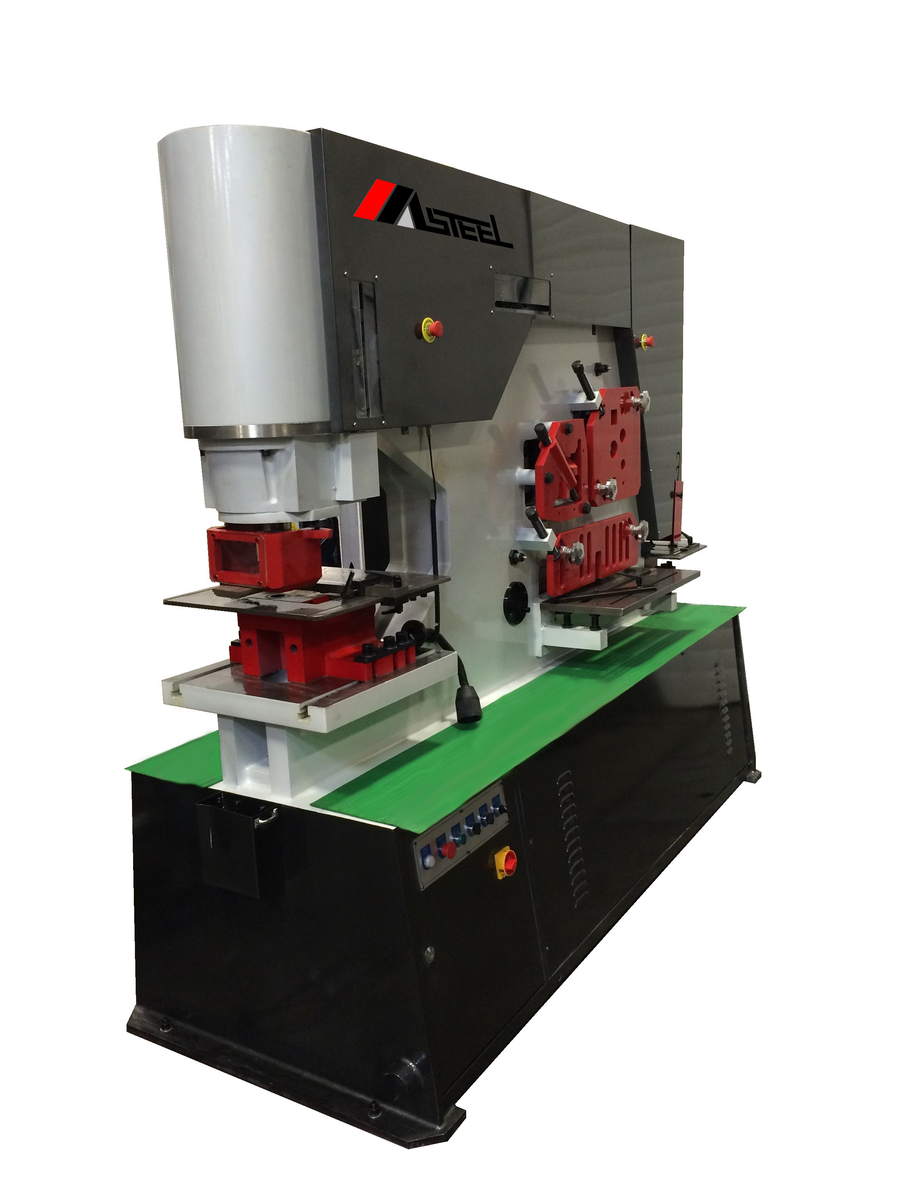

MIWH-66
OVERVIEW
PUNCH STATION:
Universal die block for punching of large flats, angle & channel / beam flanges
Quick change punch holder, ring and adapters
Swing away punch stripper with view window
Punch table with scale and two adjustable gauging stops
Bending attachment with punch and multi-die (Optional)
SHEARING STATION:
Shearing stations back gauge w/touch & cut feature
Adjustable hold down for all shearing section stations
90 and 45 angle bar shearing station
Various size square and round bar shear
15" square arm with scale for flat bar shearing station
NOTCHING STATION:
Notching table with scale and 3 adjustable gauging stops
Special design clearance for cutting angle and flat bar
Electrically locked safety guard
Request Quote on This Model
Specifications
| ITEM | MIWH-66 |
| Punch tonnage (Ton) | 66 |
| Max. Punch Capacity (Diameter X thickness) | 1” x 9/16” |
| Throat Depth | 12” |
| Flat Bar Shearing (Thickness x Width) | 3/4" x 10” 9/16” x 14” |
| Angle Bar Shearing @ 90° | 5” x 5” x 1/2” |
| Round Bar Shearing | 1-3/4” |
| Square Bar Shearing | 1-9/16” |
| Notching | 2” x 3-1/2” x 5/16” |
| Main Motor | 7-1/2 HP |
| Weight in Lbs | 3360 |
| Dimensions L x W x H | 76” x 30” x 70” |
Tooling
|
Standard 65 series
die |
|
Punch 26 series |
|
Op die 59 series |
|
Punch 23 series |
