LE-25H

Download
  • Masteel Fabrication Catalogue

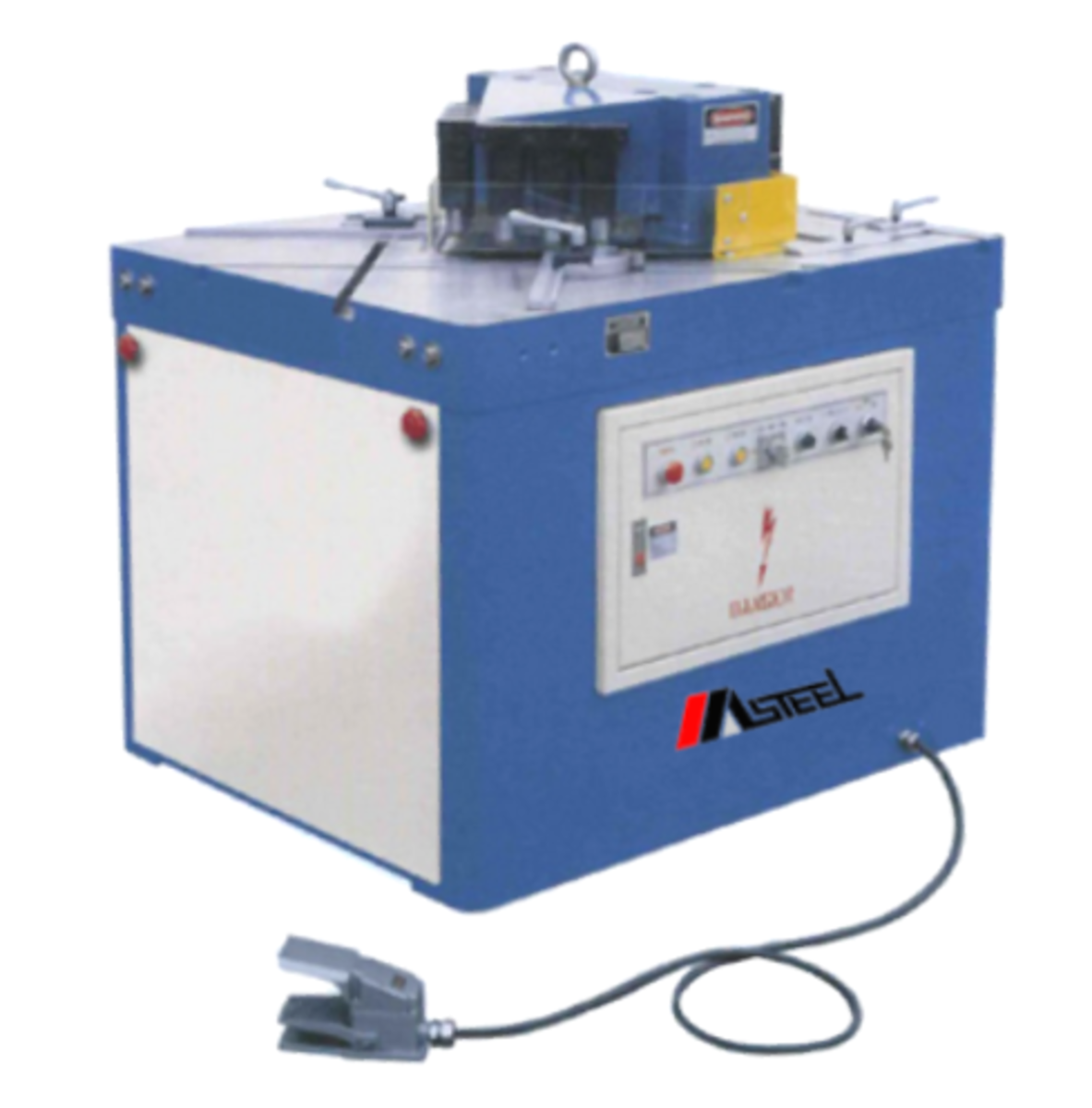

Product Image

Dual-head design: This design enables notching in one head and edge punching in another head. Control system: Centralized control box with remote foot switch provides single, inch and continuous stroking operation. Fine adjustment: A good scale for small materials positioning with a fine adjustment on X-axis and stop Y-axis is provided. Material holder: In order to prevent deviation during cutting, this material holder can hold the material while lowering the blades.

Request Quote on This Model

Specifications

CAPACITY (MM) 6.4
MAX. NOTCH (MM) 254 X 254
EDGE NOTCH (MM) 100 X 150
RAM STROKE (MM) 38
STROKE (SPM) 21
MOTOR (HP) 5
WEIGHT (KG) 1300
WEIGHT (KG) 2413 X 914 X 1448

Features

Full hydraulic drive and control system

Notching blades

Edge punching blades

Remote foot control

Finger guards
