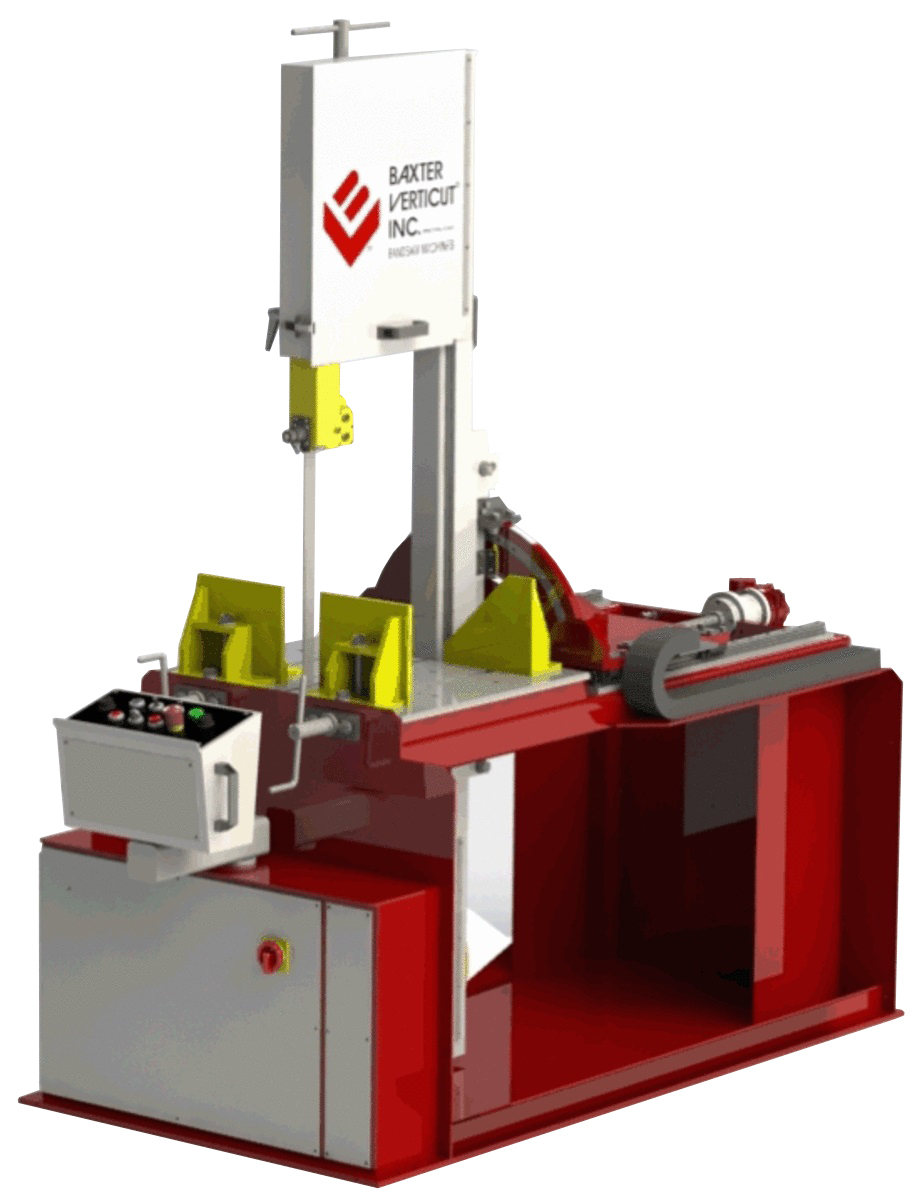

BAXTER 360MV-C
MITERING VERTICAL BANDSAW
Request Quote on This Model
Specifications
| CUTTING CAPACITY | |
| Round at 90 degrees | 14″ |
| Round at 45 degrees | 12 3/4″ |
| Rectangular | 14″ X 17″ |
| SPECIFICATIONS | |
| Blade Size | 1 1/4″ X 4’6″ |
| Blade Speed (ft/min) | 60 to 400 |
| Feed Rate | .5 to 40 inches per minute |
| Blade Tension (spring compensated) | 25,000 psi |
| Table Height | 34 1/2″ |
| Maximum Work Load | 2,000 lb. |
| Machine Weight | 1,600 lb. |
| Overall Dimensions | 88″ X 46″ X 86″ |
| DRIVE | |
| Bade Drive | 5 Hp |
| Feed Drive | 1 Hp |
| Voltages Available (three phase) | 460/3/60 standard208, 230, 573/3/60 and 220/1/60 available |
FEATURES INCLUDED AS STANDARD EQUIPMENT
- Machine can miter cut 45 degrees to the right and left, as well
as cut vertically - Feed is driven by ball screw
- Blade speed controlled with a variable frequency drive
- Variable feed rate range .5 to 40 ipm
- Energy efficient design, no hydraulic pump running constantly
- Material is clamped, left & right of blade
- Adjustable head cant of 3º
- Machine movement is on linear bearings to provide maximum
rigidity and smooth motion - Blade Guides are carbide faced with roller to remove blade
twist and dampen vibration - Magnetic motor starter with shut off at the end of cut, motors
thermal overload protection - Blade is preloaded to optimize cutting
- Blade tension is spring compensated
- Blade drive system consists of a direct drive, worm gear drive.
- Convenient located control station mounted on swinging
console for operator convenience, controls, saw forward, saw
retract, saw cut, coolant on, blade speed, feed rate - Adjustable stops for saw travel forward allow notching of
blocks and saw retract to allow for different sizes of material - Ductile iron wheels
- Mist coolant system
- Electrical system uses only C.S.A./UL approved
components - Premium quality bimetal bandsaw blade
Options
| Conveyor |
| Swivel Vise Jaws |
| Laser Indicating Light |
| Single Phase Electrics |
| Voltages 575/3/60 or 208, 230/3/60 |
