BAXTER 500MV-C
MITERING/VERTICAL BANDSAW

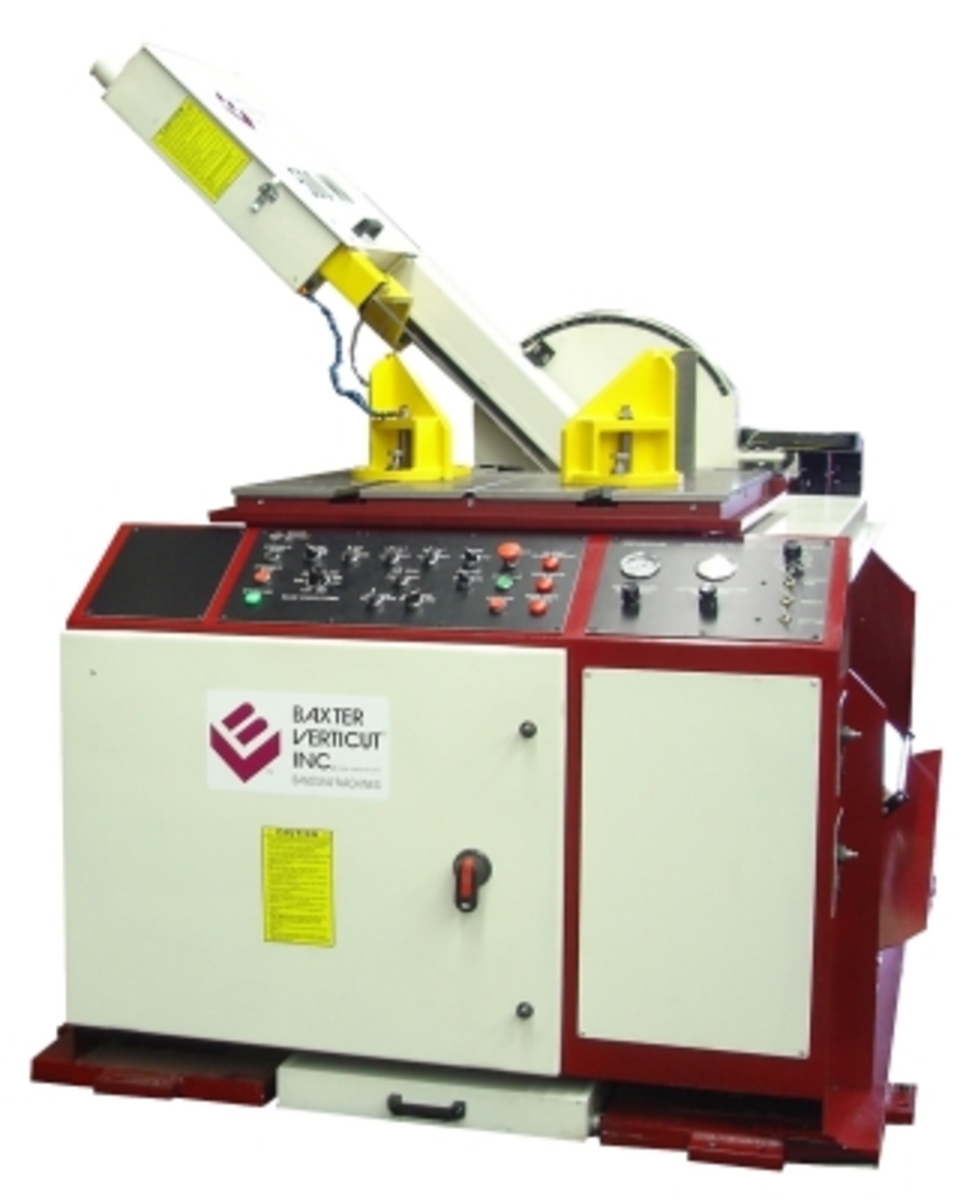

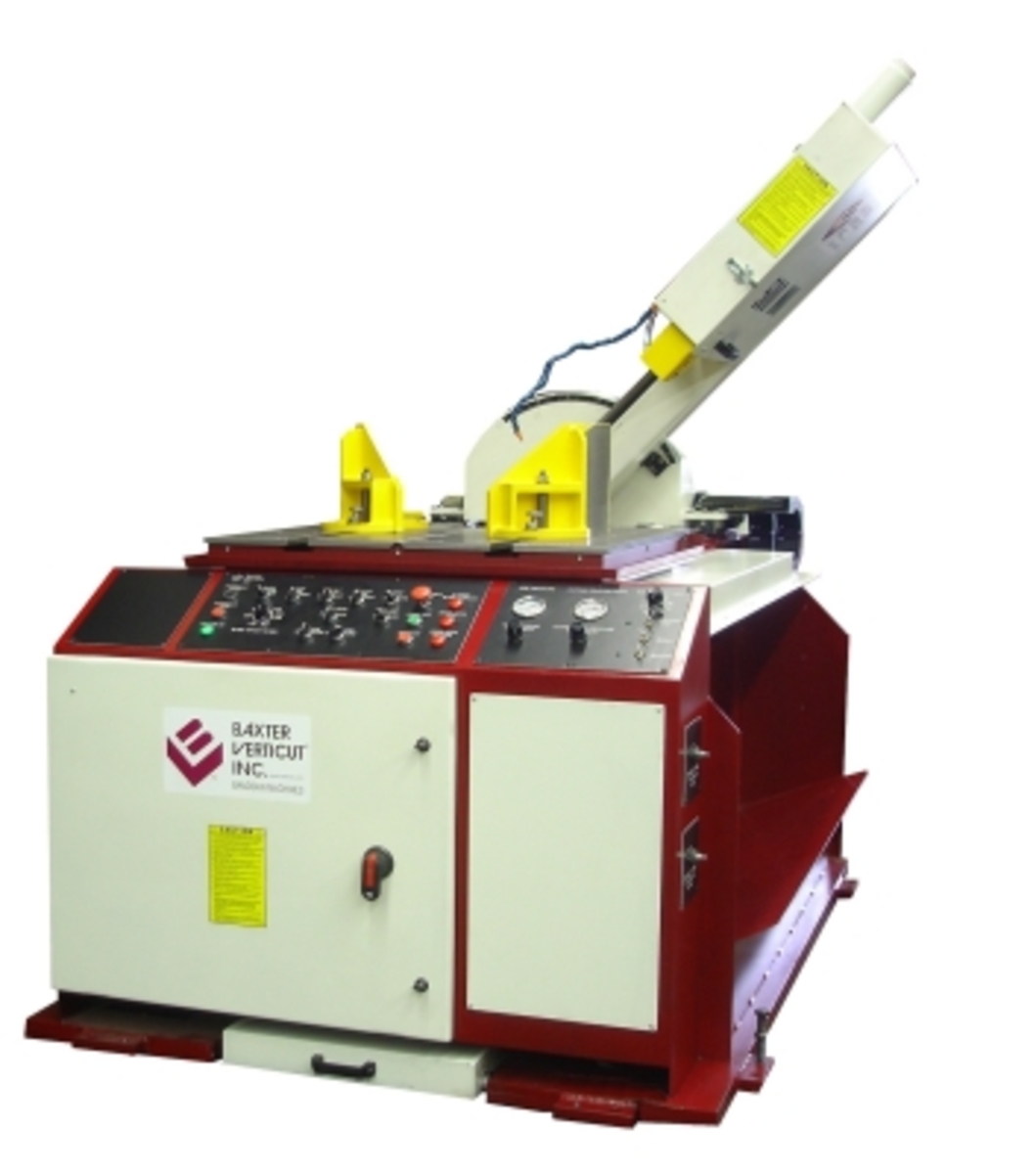

The model 500MV miters 45 degrees left and right. Additionally the two sets of vises pivot making it possible to cut compound angles.
The machine has a high efficiency planetary gearbox. Hydraulically actuated movement of the saw head tilt, full stroke vises and top blade guide arm.
Request Quote on This Model
Table Specifications
| CUTTING CAPACITY | |
| Round at 90 degrees | 18” (457 mm) |
| Round at 45 degrees | 18” (457 mm) |
| Rectangular at 90 degrees | 18” x 25” (457 mm x 635 mm) |
| SPECIFICATIONS | |
| Blade Size | 1 ¼” x 16’6” (34 mm x 5030 mm) |
| Blade Speeds (ft/min) | 80 to 450 (24 to 135 m/min) |
| Blade Tension (spring compensated) | 25,000 psi (172 MPa) |
| Blade Guides | Carbide with rollers |
| Table Height | 38” (965 mm) |
| Maximum Work Load | 6,000 lb. (2700 kg) |
| Machine Weight | 5000 lb. (2188 kg) |
| Overall Dimensions | 118 ¾” x 64” x 101” (3016x1626x2564mm) |
| DRIVE | |
| Blade Drive | 7 ½” Hp (5.6kW) |
| Hydraulic Drive | 3 Hp (2.25 kW) |
| Voltage (three phase) | 575/460 |
FEATURES INCLUDED AS STANDARD EQUIPMENT

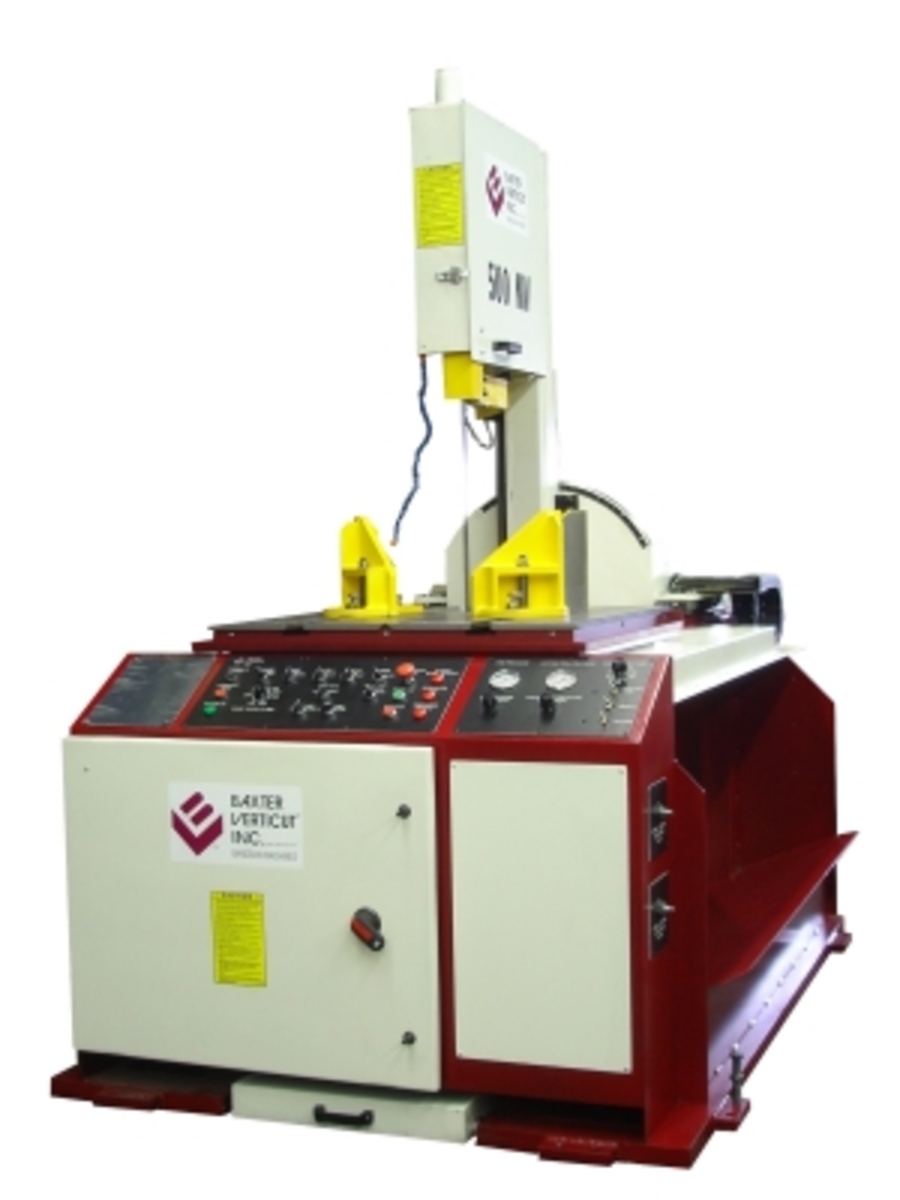

- Machine can miter cut 45 degrees to the right and left, as well as cut vertically
- Angle is adjusted hydraulically
- Material is clamped by hydraulic vises – 2 sets, left & right of blade
- Variable vise pressure with panel mounted adjusting valve
- Vise can swivel thus allowing the cutting of compound angles
- Machine movement is on linear bearings to provide maximum rigidity and smooth motion
- The saw head feed utilizes a load sensing valve which stops the feed if the blade starts to overload, typical when cutting the web of structural shapes
- Blade Guides are carbide faced with rollers to remove blade twist and dampen vibration
- Magnetic motor starter with automatic shut off at the end of cut, motors thermal overload protection
- Blade is preloaded to optimize cutting
- Blade tension is adjusted hydraulically
- Blade drive system consists of a direct drive, high efficiency planetary geardrive. Blade speed controlled with a variable frequency drive
- Manual saw forward, saw retract, saw cut, vises open/closed, slow and fast and saw head tilt
- Semi automatic cut cycle consists of saw start, saw cut, saw stop, and saw retract
- Adjustable stops for saw travel forward allow notching of blocks and saw retract to allow for different sizes of material
- Steel wheels with ductile iron hubs
- Flood coolant system to both saw guides and an adjustable nozzle mounted on a saw head, all with adjustable flow rates
- Electrical system uses only C.S.A./UL approved components and is electrically approved
- Premium quality bimetal bandsaw blade
- Instruction and parts manual
Options
Conveyor
