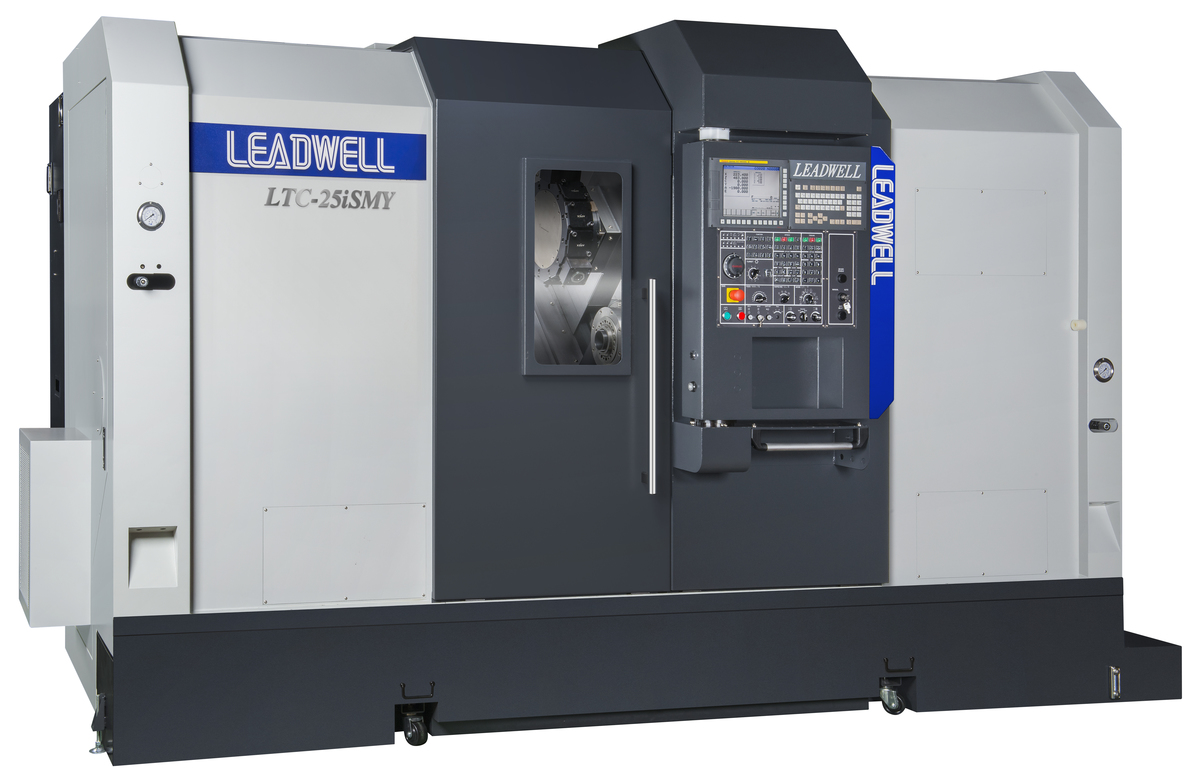

LTC-25iSMY

Download
  • Leadwell LTC-25iSMY
Series Image Series Image

Multi-Tasking Turning Center


Request Quote on This Model

Select Machine Size/Model Here

Technical Specifications

MODEL LTC-25iSMY
Max. swing mm(in) 590 (23.2)
Max. turning diameter mm(in) 430 (16.9)
Max. turning length mm(in) 770 (30.3)
Bar capacity mm(in) 78 (3.07)
X axis travel mm(in) 215+10(8.5+0.4)
Y axis travel mm(in) ±50 (±1.96)
Z1 axis travel mm(in) 800 (31.5)
Z2 axis travel mm(in) 780 (30.7)
Spindle speed rpm 3500
Chuck size mm(in) 254 (10)
Spindle nose mm(in) A2-8
Number of tool station (live stools) pcs 12 BMT65/ DIM5480
Shank height for square tool mm(in) 25(1) BMT65
Shank diameter of boring bar mm(in) 40 (1.57) BMT65
X/Y/Z1/Z2 axis rapid traverse m/min(imp) 15/7.5/20/20(49.2/24.6/65.62/65.62)
X/Y/Z1/Z2 Kw (HP) 4/1.6/7/4 (5.4/2.1/9.3/5.4)
Sub spindle speeds range rpm 4000
Sub chuck size mm(in) 210(8)
Sub spindle nose   A2-6
Machine size (LxWxH) mm 5080x2085x2365
Machine weight Kg 8900
