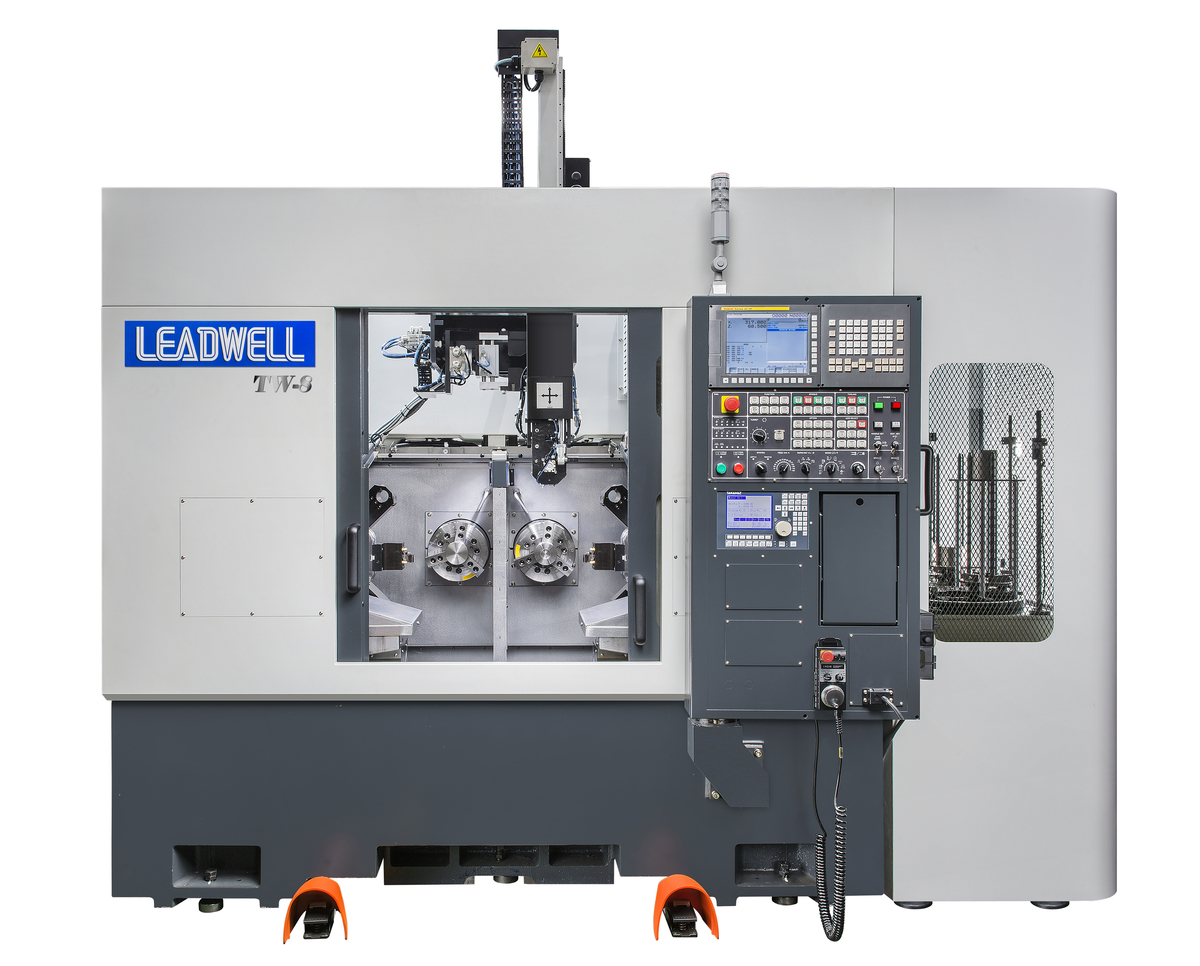

TW-8
.jpg)

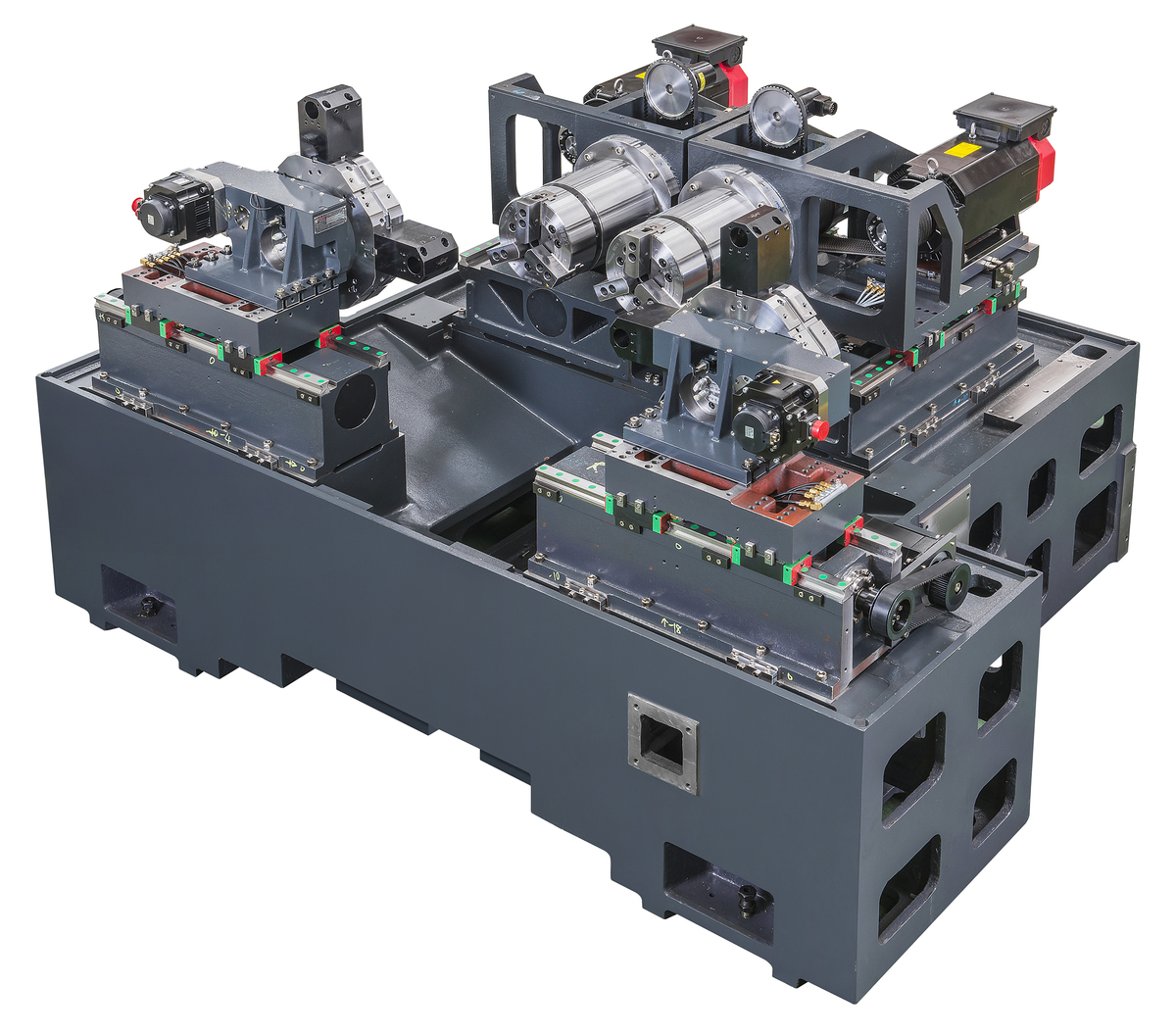

Dual Spindle & Turret Turning Center
Request Quote on This Model
Select Machine Size/Model Here
Technical Specifications
| MODEL | TW-8 | |
| Max. swing | mm(in) | 290 (11.42) |
| Max. turning diameter | mm(in) | 290(11.42) |
| Max. turning length | mm(in) | 160 (6.3) |
| X axis | mm(in) | 145+10 (8.86+0.59) |
| Z axis | mm(in) | 165 (31.1) |
| Spindle speed | rpm | 4500 |
| Chuck size | mm(in) | 208 (8”) |
| Type of spindle speed | A2-6 | |
| Through spindle hole diameter | mm(in) | 61 (2.4) |
| Spindle motor type | FANUC | a8-7000i |
| Spindle motor power | Kw(HP) | 11 (14.7) |
| Number of tool station | pcs | 8 |
| Shank height for square tools | mm(in) | 25(1) BMT55 |
| Shank diameter of boring bar | mm(in) | 40 (1.5) BMT55 |
| Index time(adjacent tools) | sec | 0.3 |
| Index time (180deg) | sec | 0.8 |
| X axis rapid traverse | m/min(in) | 24 (31.496) |
| Z axis rapid traverse | m/mm(in) | 24 (31.496) |
| Positioning X/Z VDI3441 | mm | 0.01/1000 |
| Repeatability X/Z VDI3441 | mm | 0.007/1000 |
| X/Z axis motor | Kw(HP) | a8-3000i / 1.6 (2.1) |
| Power requirement 6200 | KVA | 40 |
| Machine size (LxWxH) | mm | 2220x2200x2400 |
| Machine weight | kg | 6200 |
