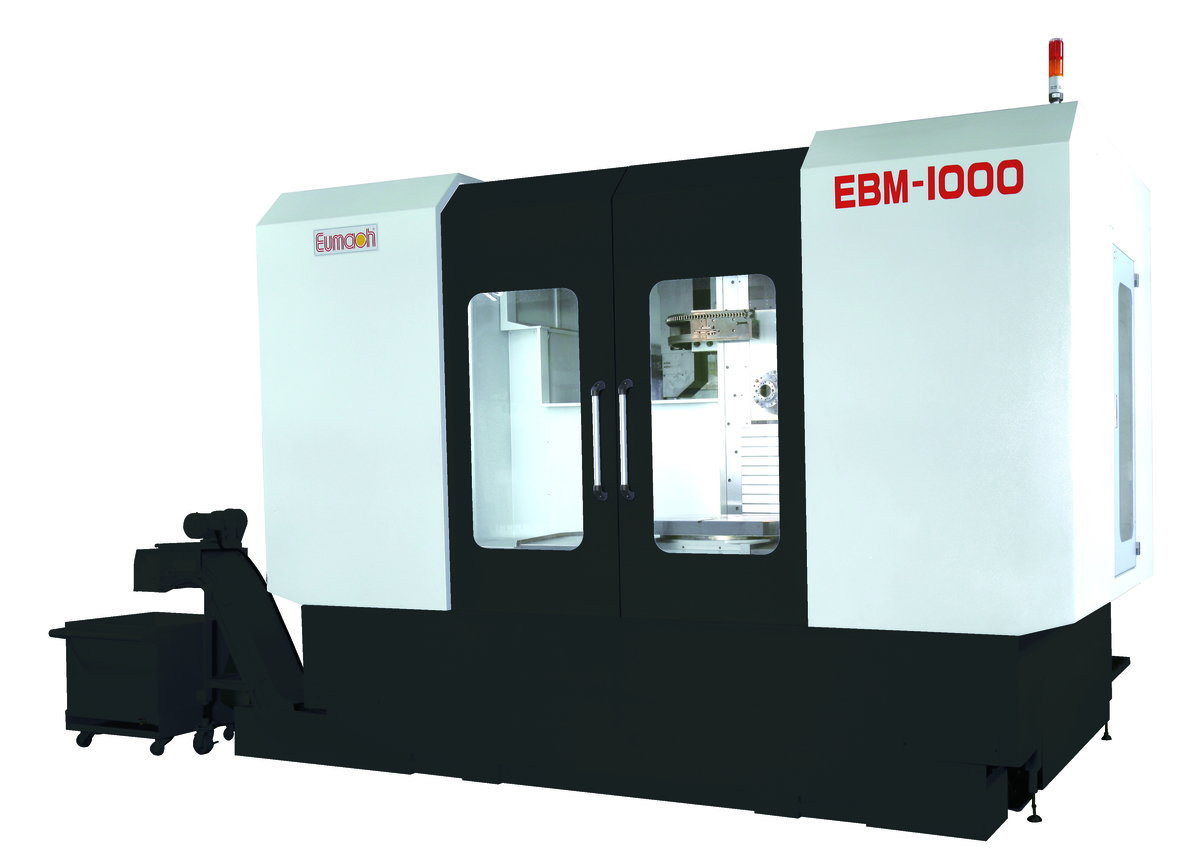

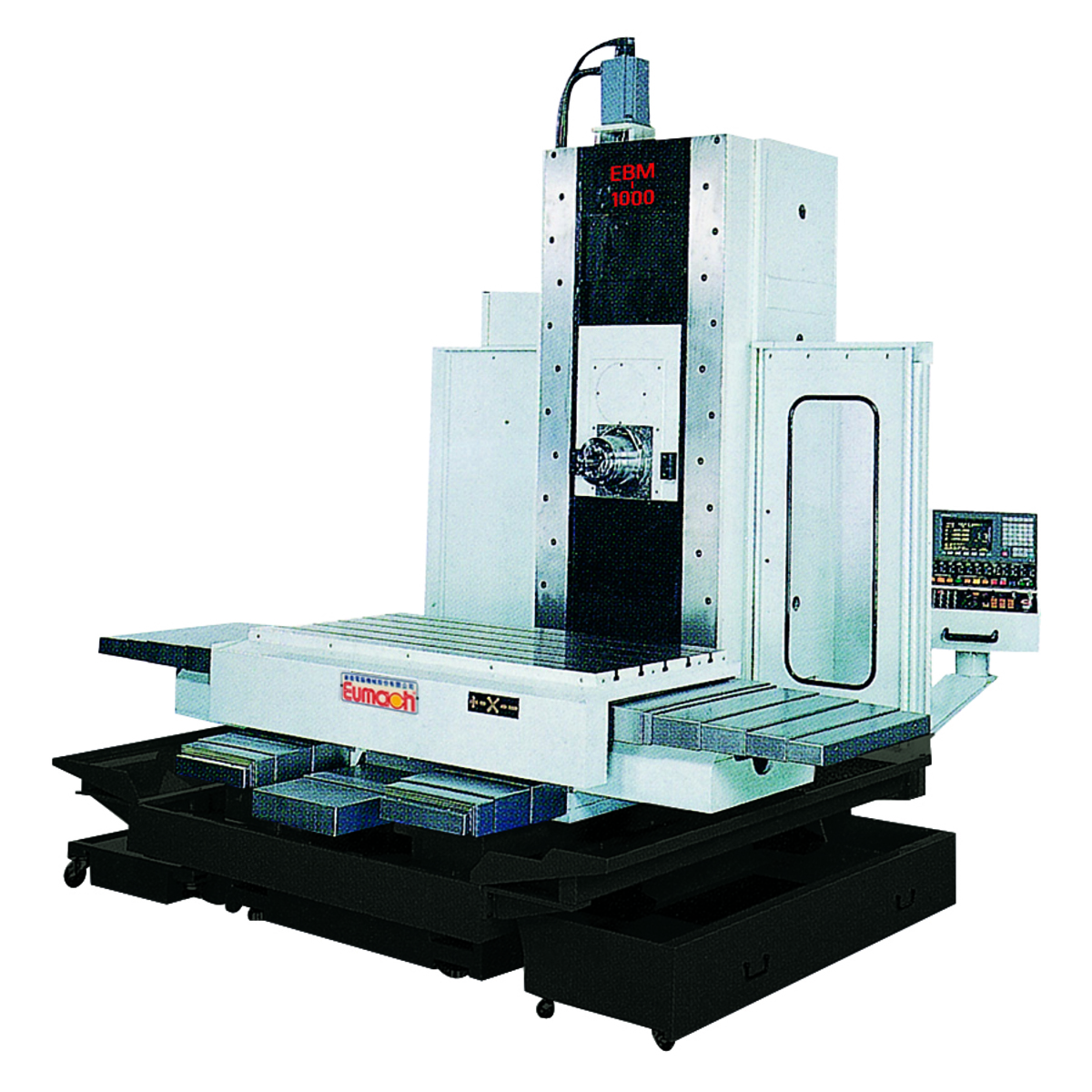

EBM-1000
HORIZONTAL MILLING MACHINES
STANDARD FEATURES & ACCESSORIES :
PROGRAMMABLE COOLANT SYSTEM
AUTOMATIC LUBRICATION SYSTEM
3. SPINDLE AIR BLAST SYSTEM
WORKING LAMP
ALARM LAMP
INDICATION LAMP FOR DWELL & END OF JOB
BT#50 SPINDLE
RS-232 TERMINAL INTERFACE PORT
Request Quote on This Model
Select Machine Size/Model Here
Specifications
| MODEL | UNIT | EBM-1000 |
| TABLE: | ||
| OVERALL SIZE | MM | 1500×710 |
| WORKING AREA | MM | 1500×710 |
| T SLOTS (SIZE×NO×PITCH) | MM | 18×6×125 |
| MAXIMUM LOADING | KG | 1500 |
| TRAVEL: | ||
| X / Y / Z AXIS | MM | 1400/1200(1400)/1000 |
| DISTANCES: | ||
| SPINDLE NOSE TO TABLE EDGE | MM | 246.5-1246.5 |
| SPINDLE CENTER TO TABLE TOP | MM | 250-1450(245-1645) |
| SPINDLE NOSE TO COLUMN SURFACE | MM | 250 |
| FLOOR TO TABLE | MM | 980 |
| SPINDLE: | ||
| TAPER | ISO | BT#50 |
| SPEED | RPM | 4000(6000) |
| MOTOR | KW | 15 |
| AXIS MOTORS: | ||
| X & Z AXIS | NM | 22 / 22 |
| Y AXIS | NM | 22 WITH BRAKE |
| CUTTING FEEDRATE | MM/MIN | 1-5000 |
| RAPID FEEDRATE | M/MIN | 10(15) |
| MINIMUM SETTING | MM | 0.001 |
| AUTOMATIC TOOL CHANGER : | ||
| TYPE OF ATC | SWING ARM | |
| NO.OF ATC | TOOLS | 32 (40,60) |
| MAX.TOOL (DIA/LENGTH) | MM | 250 / 300 |
| MAX.TOOL WEIGHT | KG | 15 |
| TOOL TO TOOL | SEC. | 3.5 |
| BALLSCREWS ON X / Y / Z : | ||
| DIAMETER | MM | 50 / 50 / 50 |
| PRECISION CLASS(C3) | MM/300MM | 0.008 |
| COOLANT & LUBRICATION : | ||
| COOLANT MOTOR POWER | KW | 0.86 |
| COOLANT TANK VOLUMN | L | 200 |
| COOLANT MOTOR CAPACITY | L / MIN | 20 |
| LUBRICCATION MOTOR POWER | WATT | 25 |
| LUBRICATION TANK VOLUME | L | 4 |
| ACCURACY : | ||
| POSITIONING | MM | JIS 6388 : ±0.005MM / 300MM VDI3441 : P0.014MM |
| REPEATABILITY | MM | JIS 6388 : ±0.003MM VDI3441 : PS0.01MM |
| ROUNDNESS | MM | JIS 6388 : ±0.01MM/300MM DIAMETER |
| MISCELLANEOUS : | ||
| MACHINE NET WEIGHT | KG | 15000 |
| POWER REQUIRED | KVA | 30 |
| PNEUMATIC REQUIRED | KG / CM2 | 7 |
